T30 Imperial (01/3030)

T30 Imperial (01/3030)

Availability:
In stock
$267.00 - $267.00
$267.00
$267.00 - $267.00
$267.00

This popular instrument features a dial face that is inclined to the workpiece surface to ensure excellent reading visibility without parallax error.

The T30 is part of our Rapid range and incorporates a rear swivel spigot enabling use for centering without additional attachments.

It also includes a precision worm mechanism as part of the inner workings to translate the vertical movement to rotational - without sliding friction or internal wear.

Features dovetail clamping slides on both the top and the bottom of the casing.

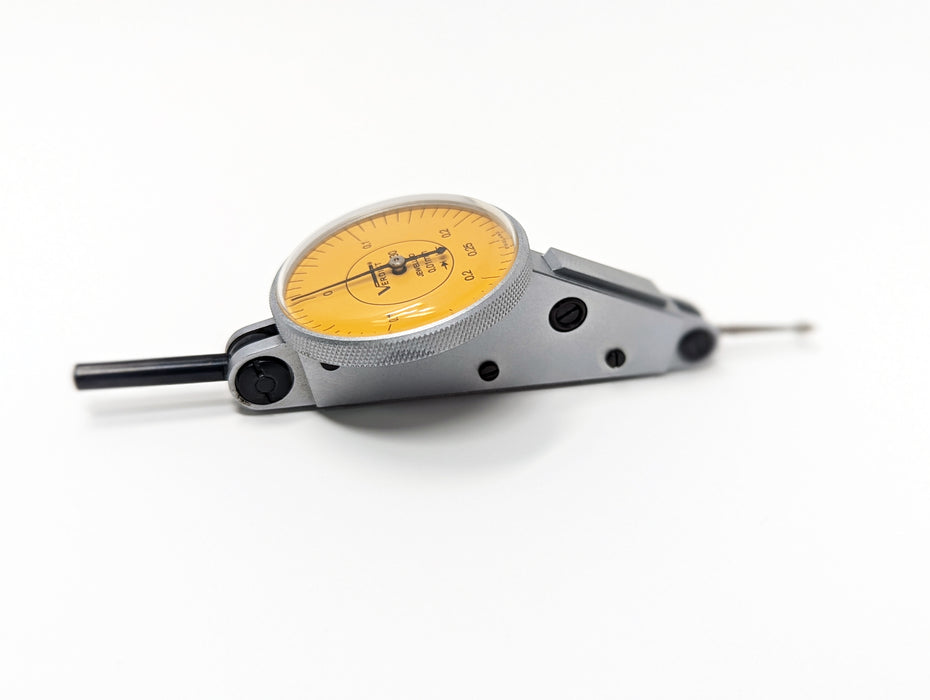

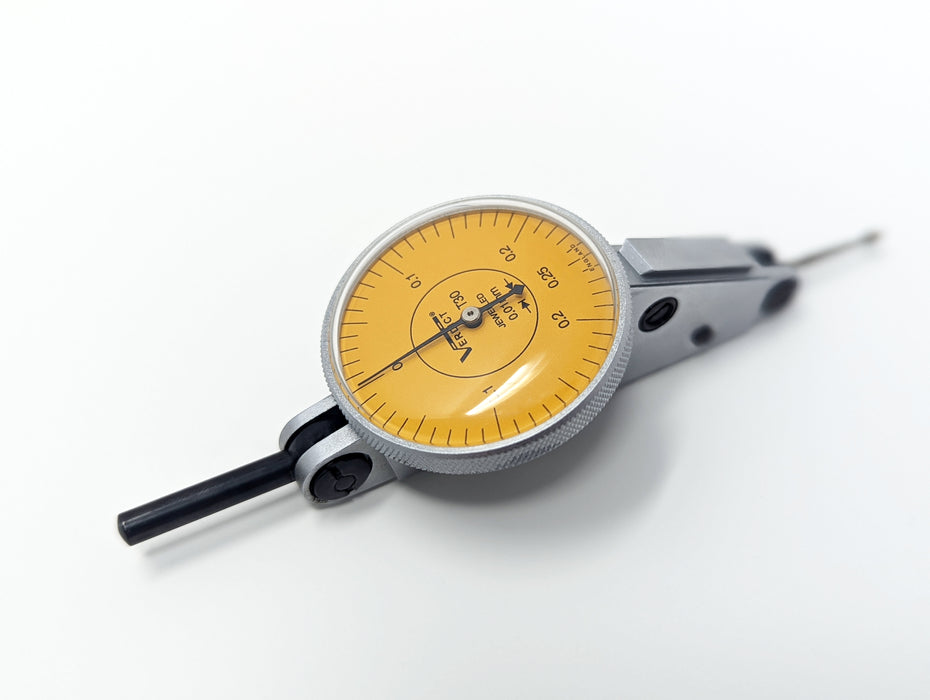

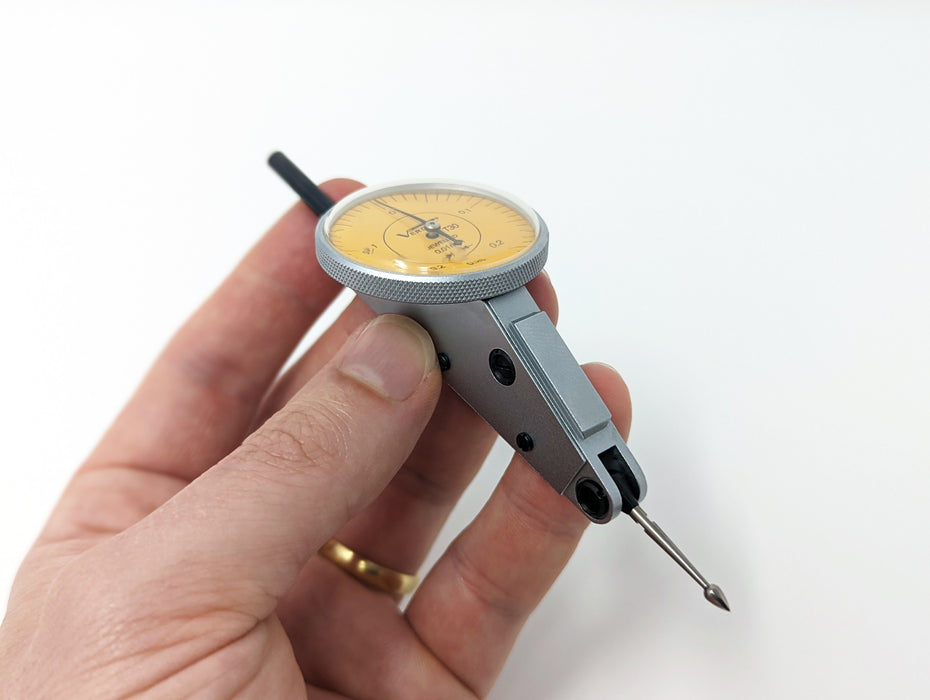

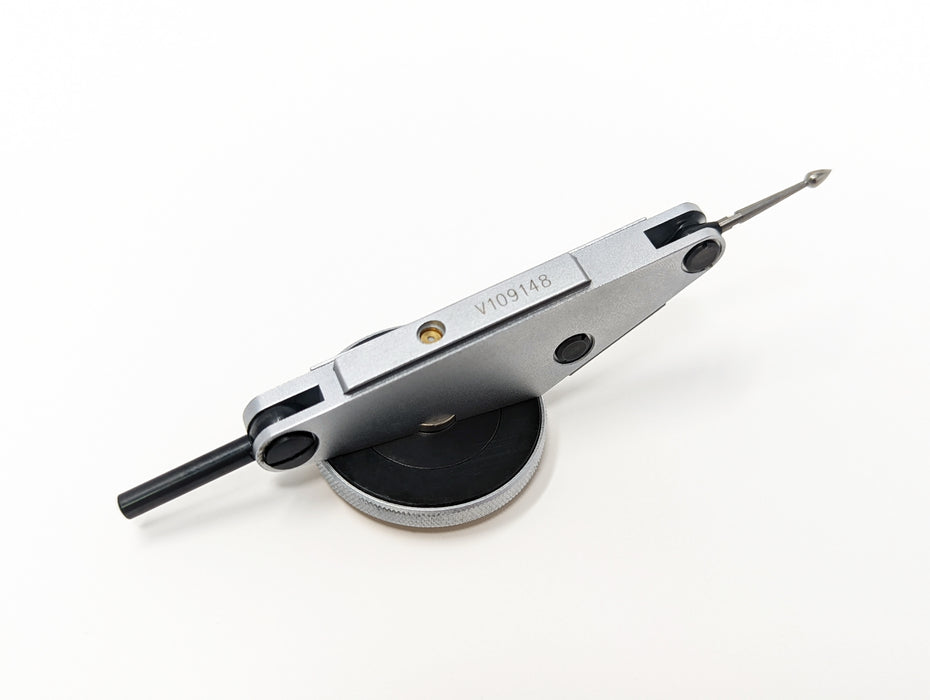

NB. Images currently show a metric dial for this model.

T30 Imperial 01/3030

Key features

• Worm mechanism

• Clamping facilities by means of dovetail or end spigot

• Dial rotates for zero setting

• Automatic reversal movement

• Jewelled mechanism

• Stylus swivels through an arc of 180 degrees

• Unidirectional hand travel

• Lever pivots are mounted in long-life ball bearings

• Imperial instruments fitted with 1/4 inch diameter spigot (metric 4mm)

• Swivel spigot standard on all models

Specifications

Product code: 01/3030

Model: T30 Rapid Imperial

Dial diameter: 1 3/8 inch

Reading: 0.0005 inch

Graduation: 0-10-0

Range: 0.02 inch

Stylus length: 0.811 inch

}
