T3 Metric (05/1003)

T3 Metric (05/1003)

Availability:
In stock
$281.00 - $281.00
$281.00
$281.00 - $281.00
$281.00

The T3 Metric Dial Test Indicator (DTI) has a dedicated switch lever for manually reversing the direction of movement depending on user requirements.

Along with user control of the movement direction, these dependable and robust models feature lever pivots that are mounted in ball bearings and provide solid kinetics in all uses.

The indicator body is machined to accept dovetail attachments.

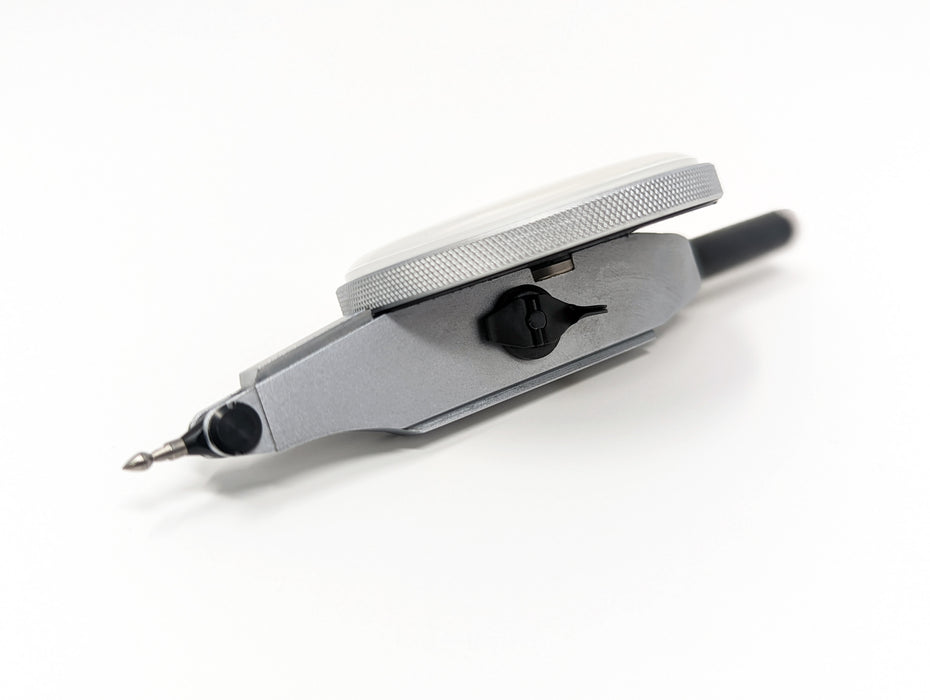

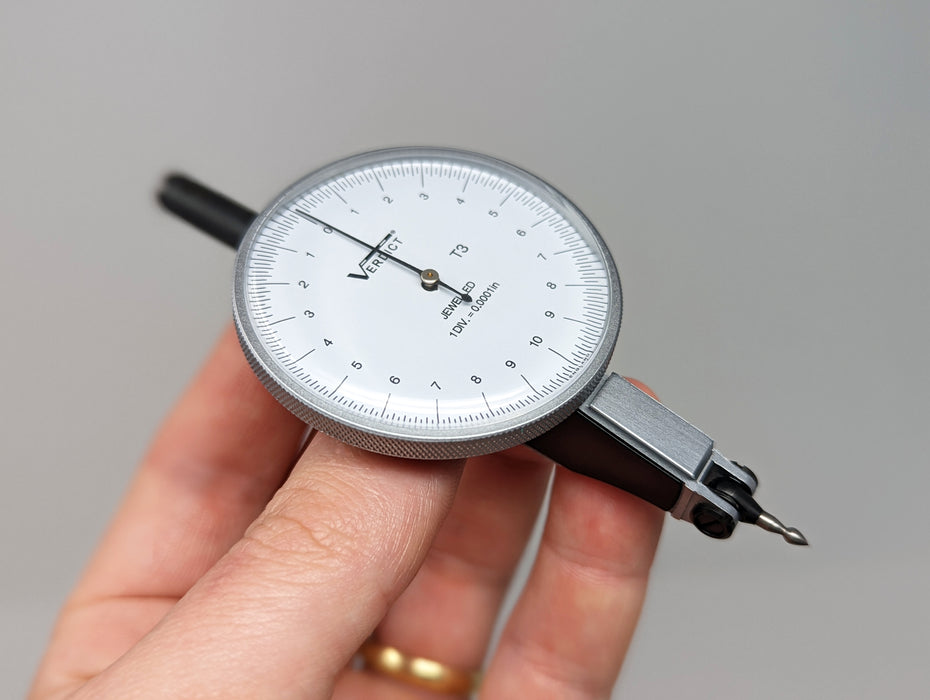

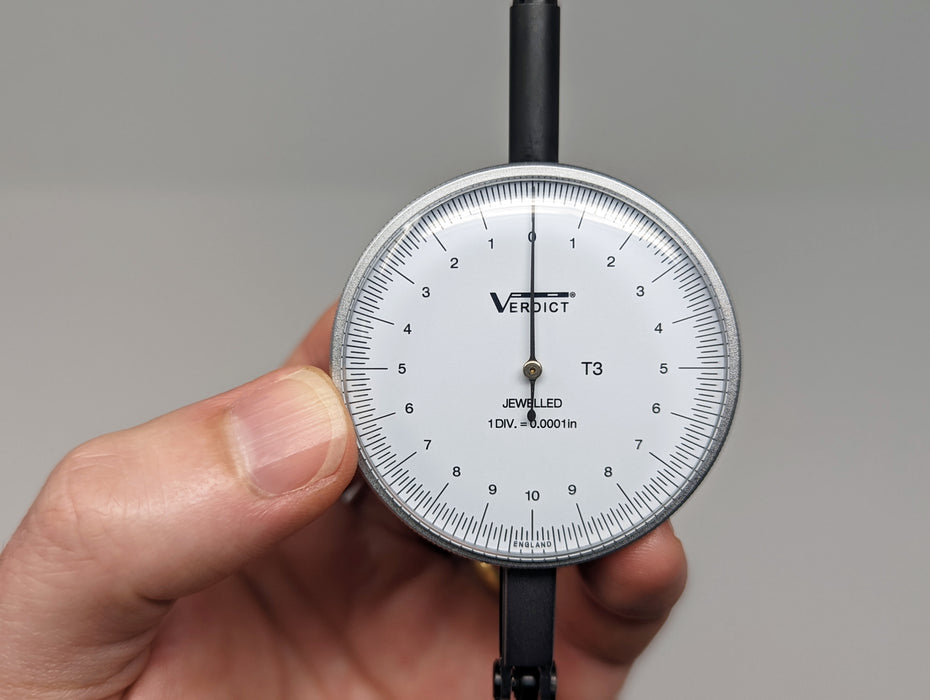

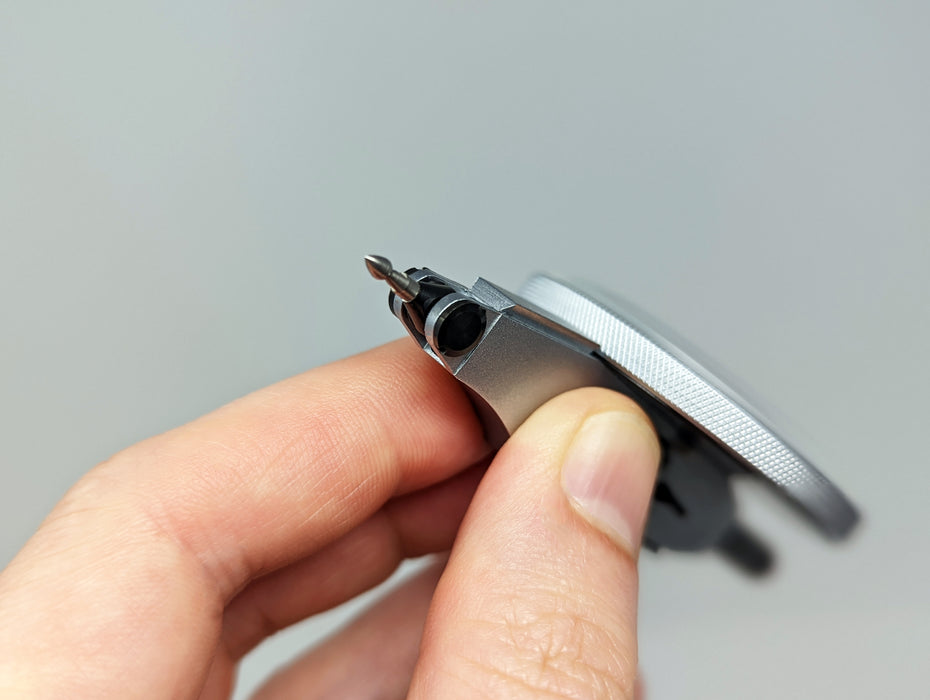

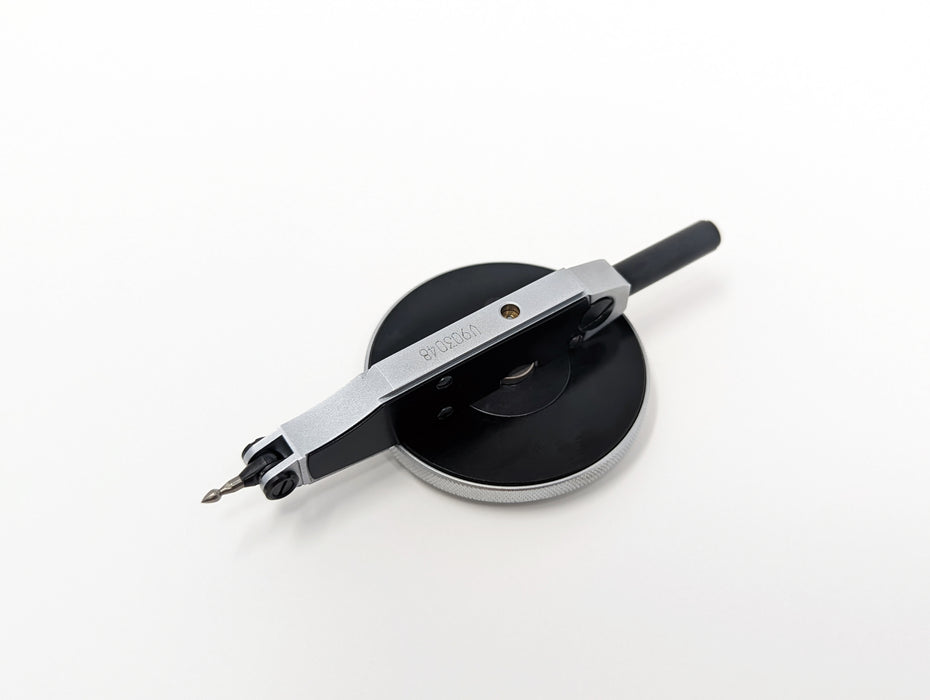

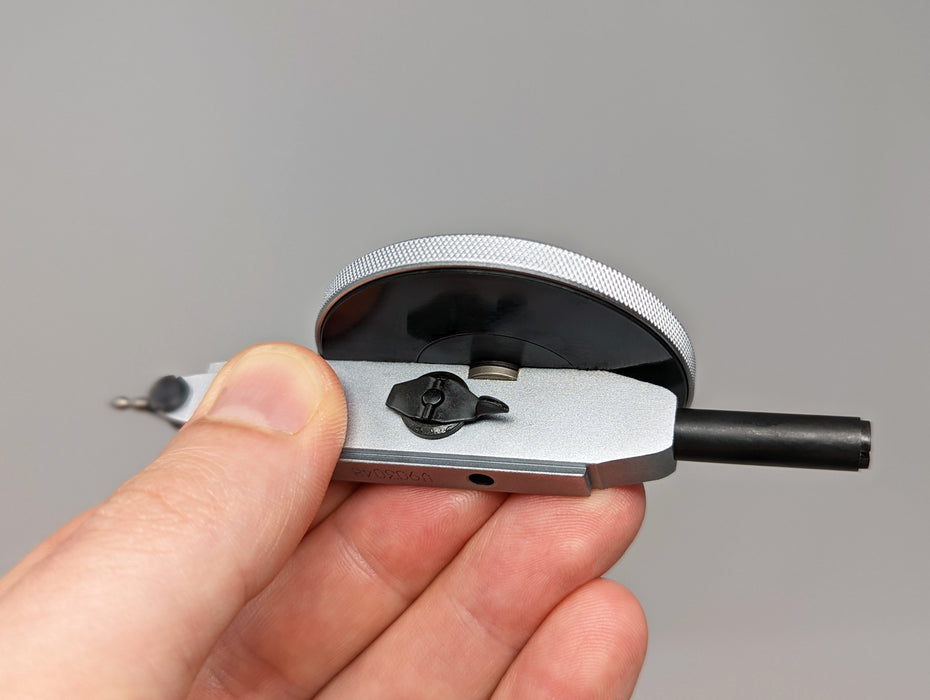

NB. Images currently show an imperial dial for this model.

T3 Metric 05/1003

Key features

• Worm mechanism

• Clamping facilities by means of dovetail

• Dial rotates for zero setting

• Automatic reversal movement

• Jewelled mechanism

• Stylus swivels through an arc of 180 degrees

• Unidirectional hand travel

• Lever pivots are mounted in long-life ball bearings

• Imperial instruments fitted with 4mm diameter spigot

• Swivel spigot standard on all models

Specifications

Product code: 05/1003

Model: T3 Metric

Dial diameter: 50 mm

Reading: 0.005 mm

Graduation: 0-0.4-0

Range: 0.8 mm

Stylus length: 13.7 mm

}
