T8 Metric (08/2009)

Availability:
In stock
Original price $147.00 - Original price $147.00
Original price
$147.00
$147.00 - $147.00
Current price $147.00

The T8 Metric Dial Test Indicator (DTI) has an automatic reversal movement, removing the need for operator involvement and risk when switching direction.

The rugged design and fine graduations of the T8 model provide maximum versatility for use in demanding workshop and trade environments as well as under critical inspection standards.

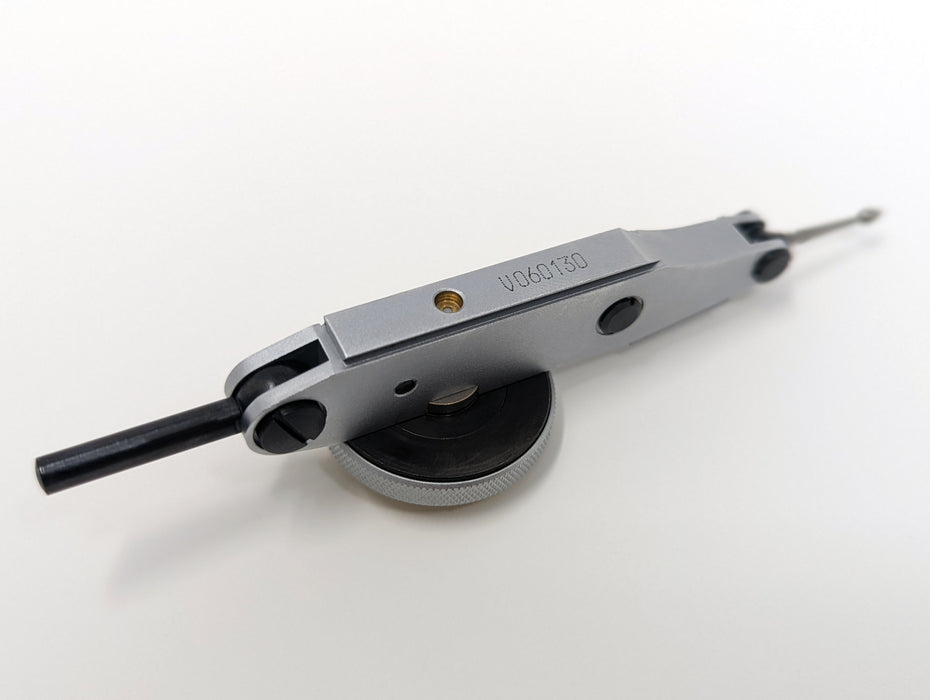

The body is machined to allow clamping facilities at the front and back by means of a dovetail, and also offers a 4mm diameter top spigot that accepts rods up to 6.5mm.

T8 Metric 08/2009

Key features

• Worm mechanism

• Clamping facilities by means of dovetail

• Dial rotates for zero setting

• Automatic reversal movement

• Jewelled mechanism

• Stylus swivels through an arc of 180 degrees

• Unidirectional hand travel

• Lever pivots are mounted in long-life ball bearings

• Imperial instruments fitted with 1/4 inch diameter spigot

• Swivel spigot standard on all models

Specifications

Product code: 08/2009

Model: T8 Metric

Dial diameter: 26.5 mm

Reading: 0.01 mm

Graduation: 0-0.25-0

Range: 0.5 mm

Stylus length: 19.5 mm

}
