T1 Imperial (05/2001)

Availability:
In stock
Original price $147.00 - Original price $147.00
Original price
$147.00
$147.00 - $147.00
Current price $147.00

The T1 Imperial Dial Test Indicator (DTI) has a dedicated switch lever for manually reversing the direction of movement depending on user requirements.

Along with user control of the movement direction, these dependable and robust models feature lever pivots that are mounted in ball bearings and provide solid kinetics in all uses.

The indicator body is machined to accept dovetail attachments and it also features a 1/4 inch diameter top spigot that accepts rods up to 0.256 inches.

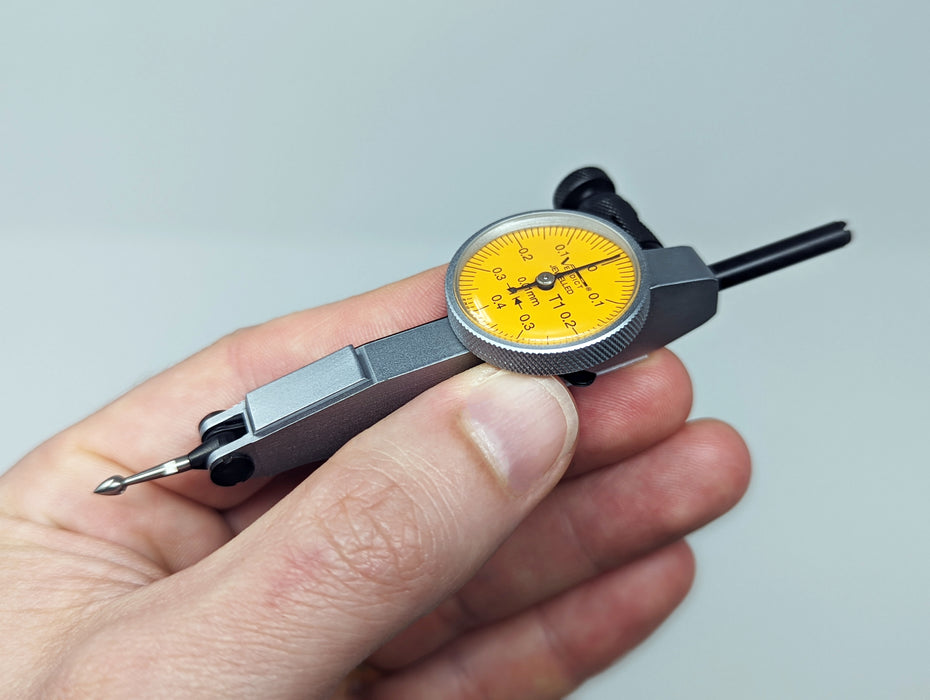

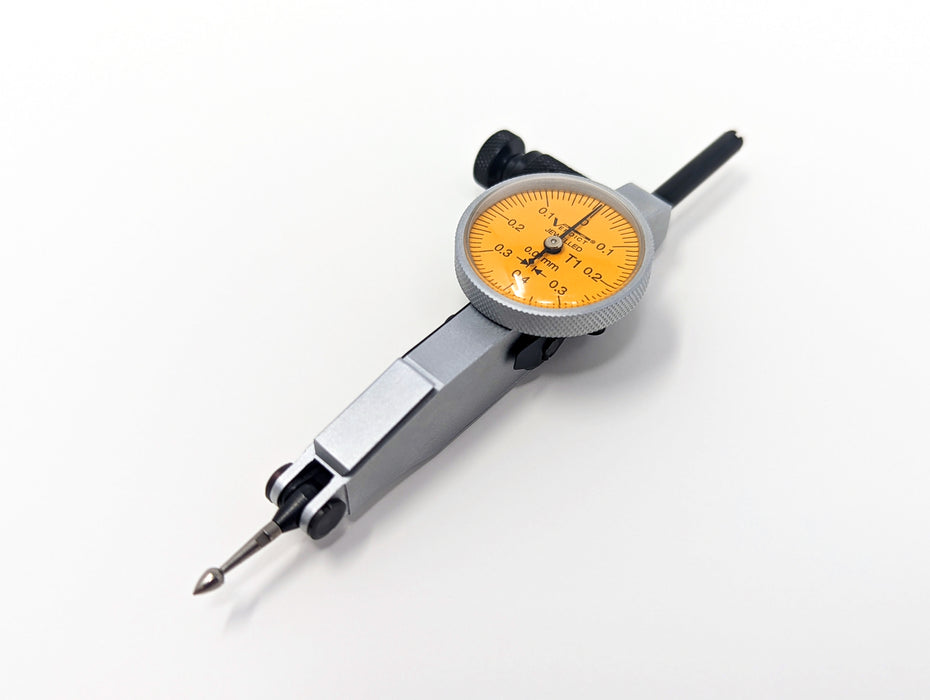

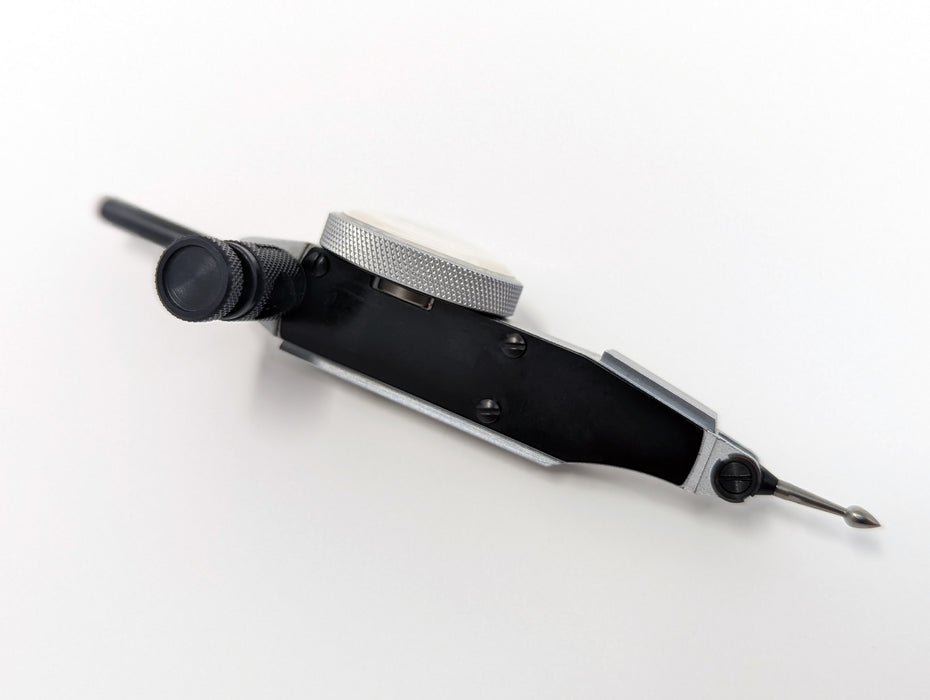

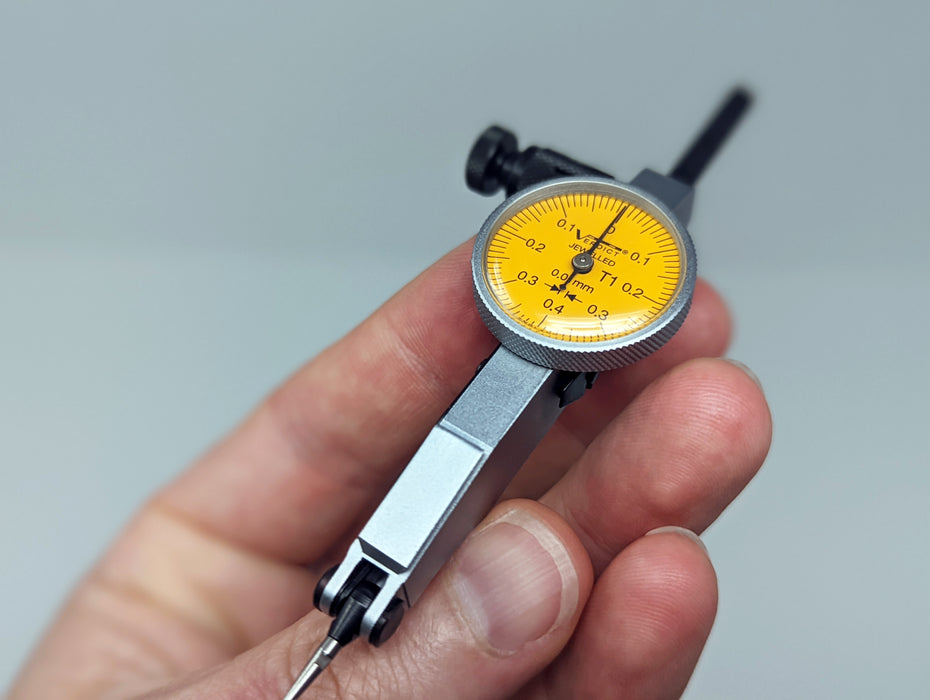

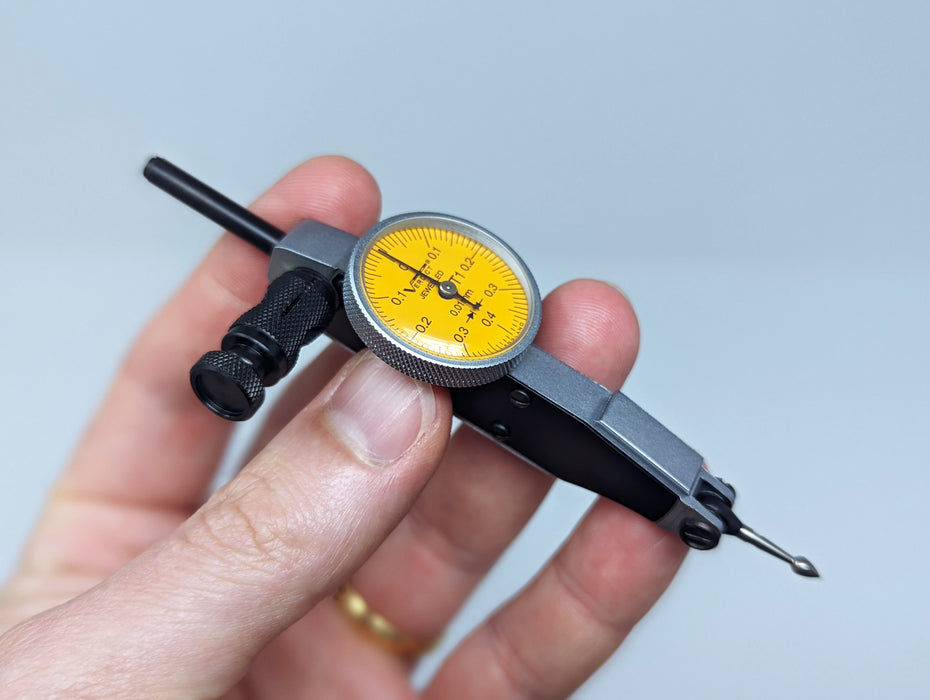

NB. Images currently show a metric dial for this model.

T1 Imperial 05/2001

Key features

• Worm mechanism

• Clamping facilities by means of dovetail or end spigot

• Dial rotates for zero setting

• Automatic reversal movement

• Jewelled mechanism

• Stylus swivels through an arc of 180 degrees

• Unidirectional hand travel

• Lever pivots are mounted in long-life ball bearings

• Imperial instruments fitted with 1/4 inch diameter spigot

• Swivel spigot standard on all models

Specifications

Product code: 05/2001

Model: T1 Imperial

Dial diameter: 1 inch

Reading: 0.0005 inch

Graduation: 0-15-0

Range: 0.030 inch

Stylus length: 0.514 inch

}
