T32 Metric (01/3132)

Availability:
In stock
Original price $165.00 - Original price $165.00
Original price
$165.00
$165.00 - $165.00
Current price $165.00

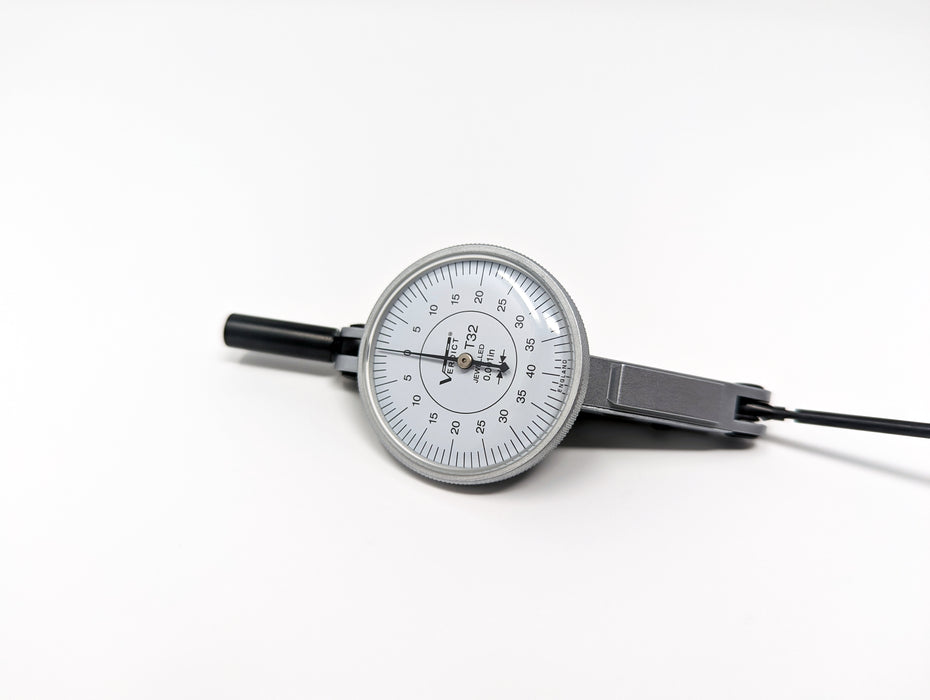

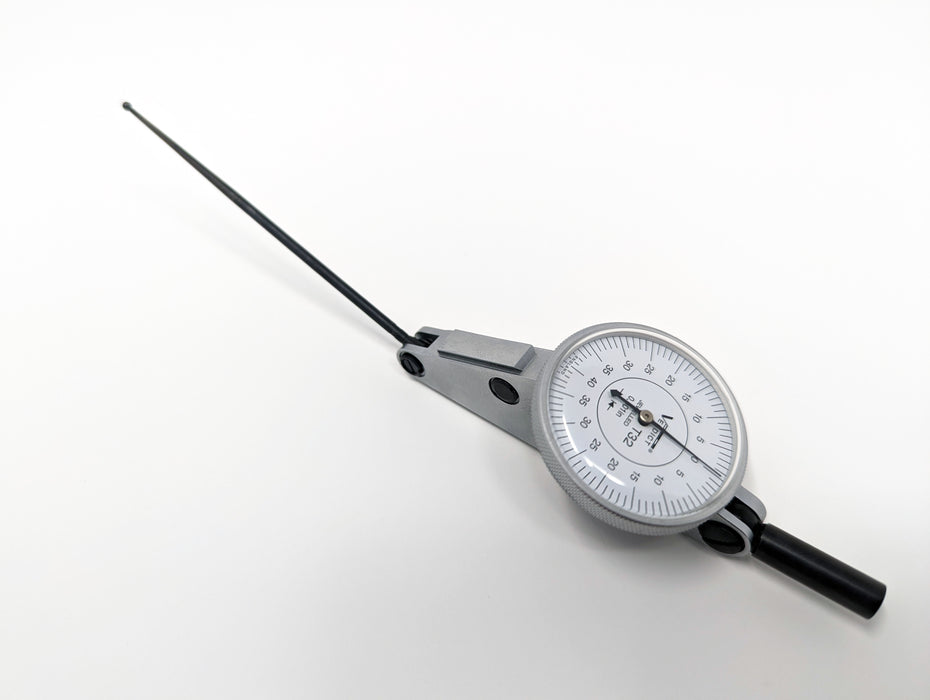

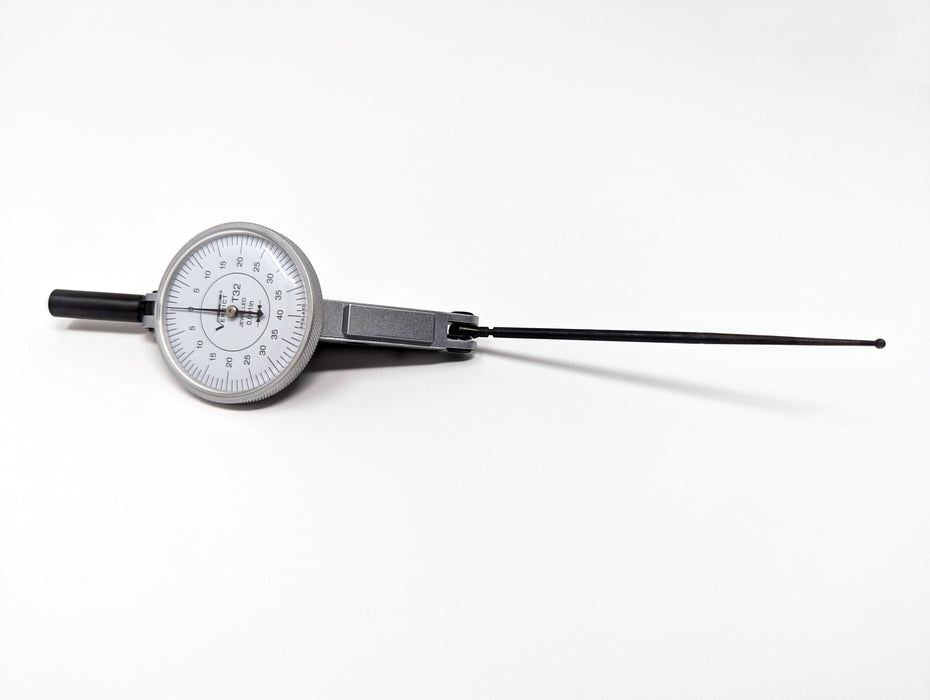

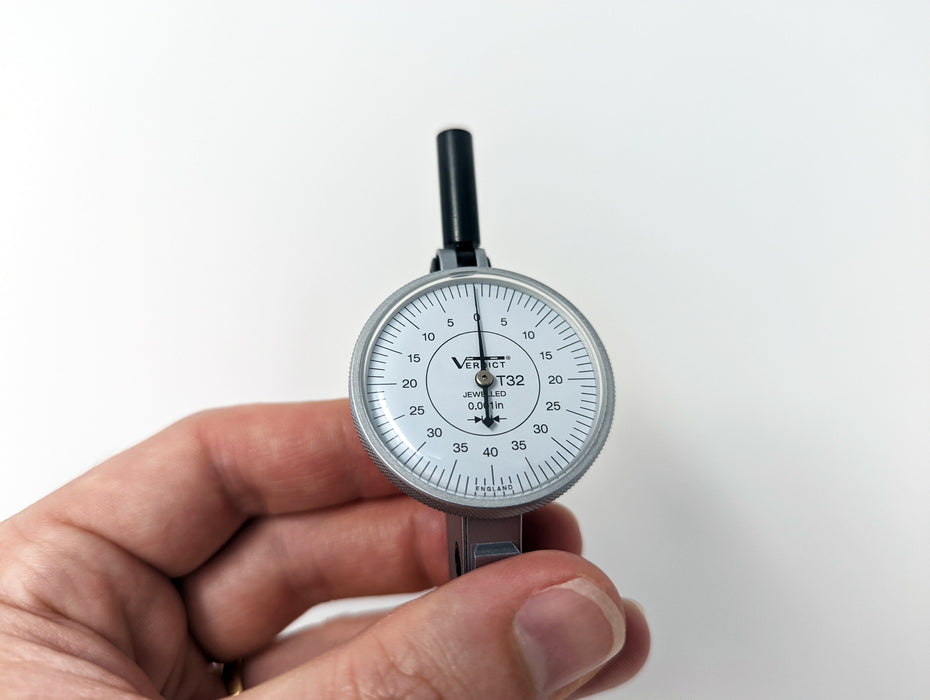

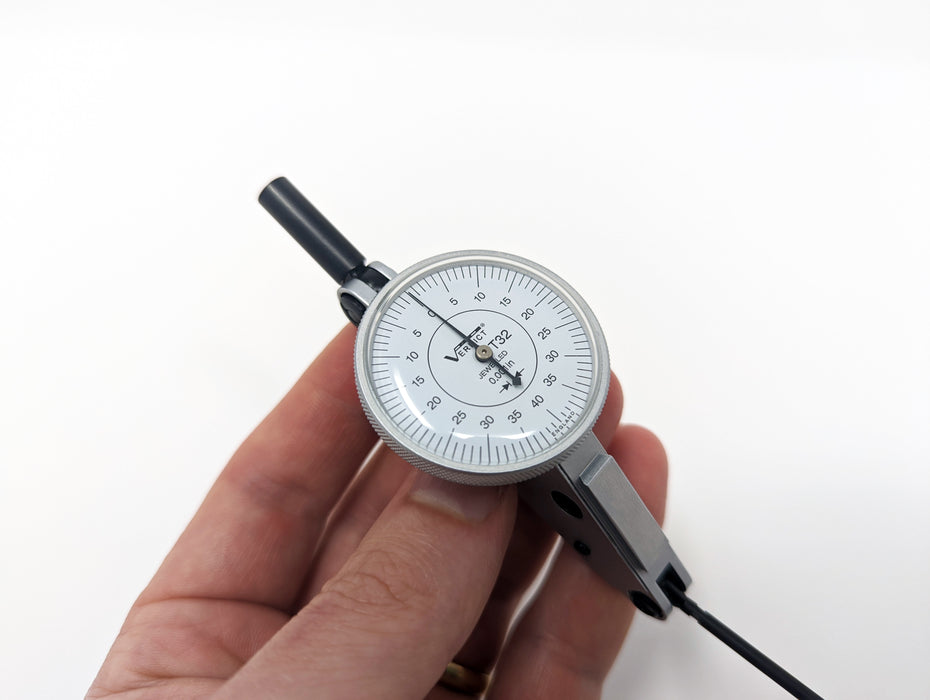

This popular instrument features a dial face that is inclined to the workpiece surface to ensure excellent reading visibility without parallax error.

The T32 is part of our Rapid range and incorporates a rear swivel spigot enabling use for centering without additional attachments.

It also includes a precision worm mechanism as part of the inner workings to translate the vertical movement to rotational - without sliding friction or internal wear.

Features dovetail clamping slides on both the top and the bottom of the body.

NB. Images currently show an imperial dial for this model.

T32 Metric 01/3132

Key features

• Worm mechanism

• Clamping facilities by means of dovetail or end spigot

• Dial rotates for zero setting

• Automatic reversal movement

• Jewelled mechanism

• Stylus swivels through an arc of 180 degrees

• Unidirectional hand travel

• Lever pivots are mounted in long-life ball bearings

• Imperial instruments fitted with 1/4 inch diameter spigot (metric 4mm)

• Swivel spigot standard on all models

Specifications

Product code: 01/3132

Model: T32 Rapid Metric

Dial diameter: 35 mm

Reading: 0.02 mm

Graduation: 0-1-0

Range: 2.0 mm

Stylus length: 81.18 mm

}
